Main Components of the SG System

Hynergy-Selection of Shaft Generator

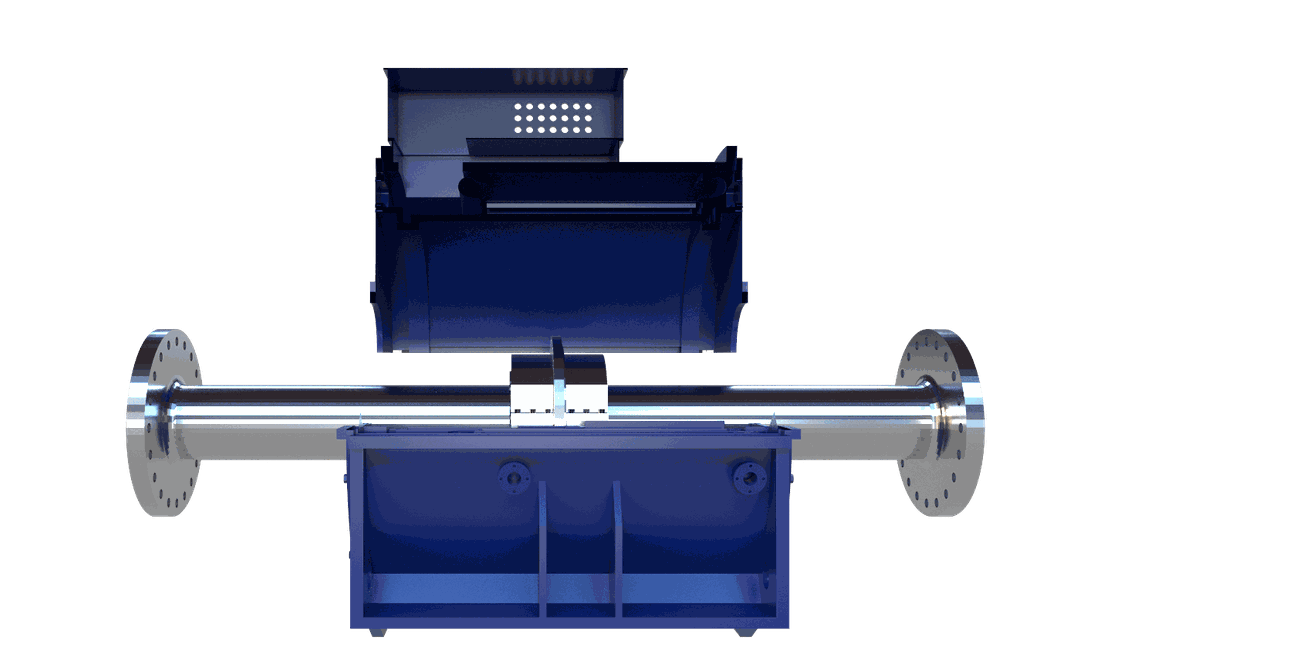

Permanent Magnet Split-Half Type

Applicable Projects: Retrofit / Newbuilding

No modification to original shaft system, more suitable for retrofit.

Power Range

500KW-3500KW

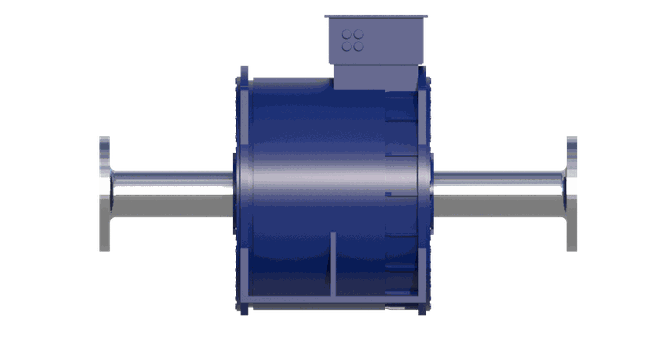

Permanent Magnet In-Line Type & Excitation In-Line Type

Applicable Projects: New Building

If it is used in retrofit project，the shaft should be replaced.

Power Range

500KW-5000KW

Optional Components

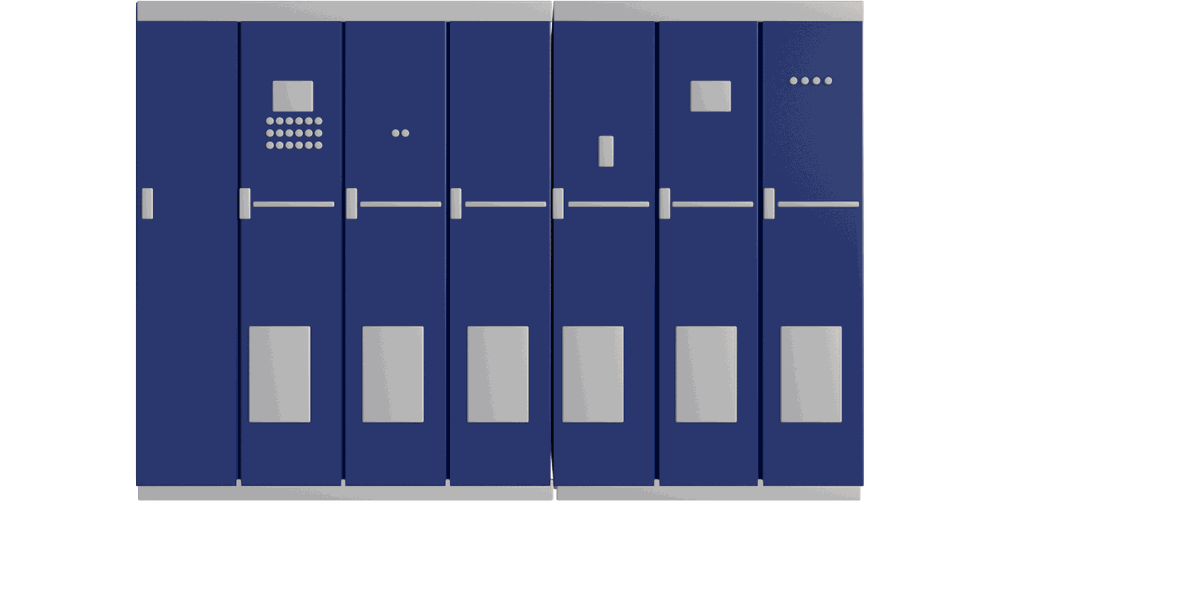

Frequency Converter

  • Adjust the voltage and frequency to achieve the power management function
  • Convert the AC power output by the shaft generatorinto stable DC/AC power.
Cooperative Brands (Including but not limited to):

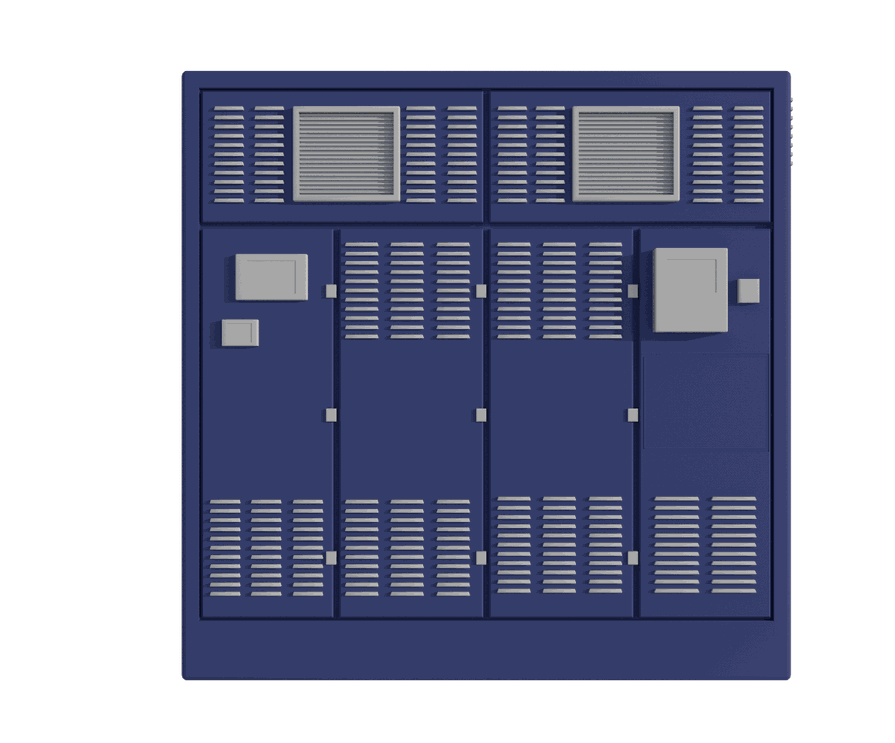

Transformer

The output voltage of the shaft generator is transformed into the voltage suitable for the ship's power grid, and it also has the function of isolation and protection.

Cooperative Brands (Including but not limited to):

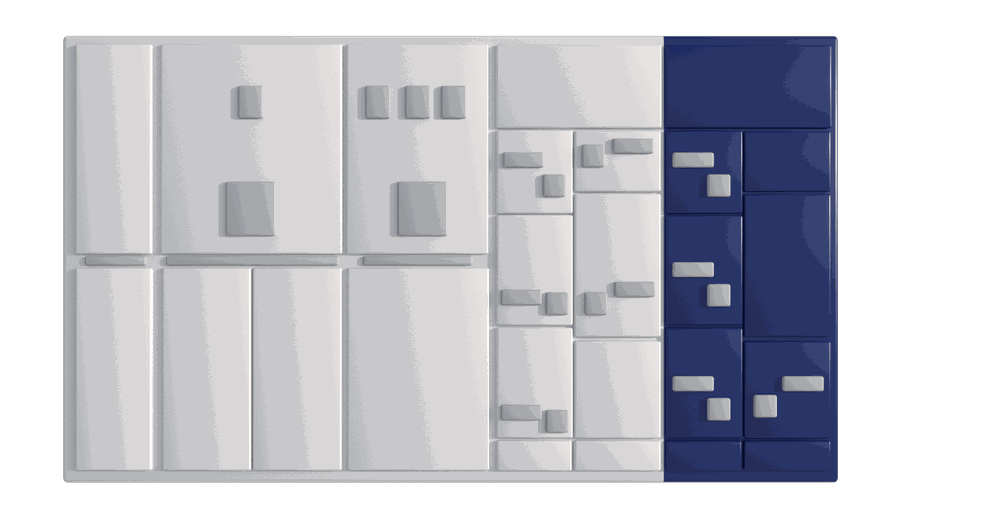

Shaft Generator Panel

  • Achieving Ship's Electrical Grid Distribution
  • Used for synchronization, de-synchronization, and operation of the shaft generator system
  • Retrofit Ship Types: Mainly involves modifications related to the original ship's switch board
  • Reefer Load Panel:Used for reefer containers
Cooperative Brands (Including but not limited to):
